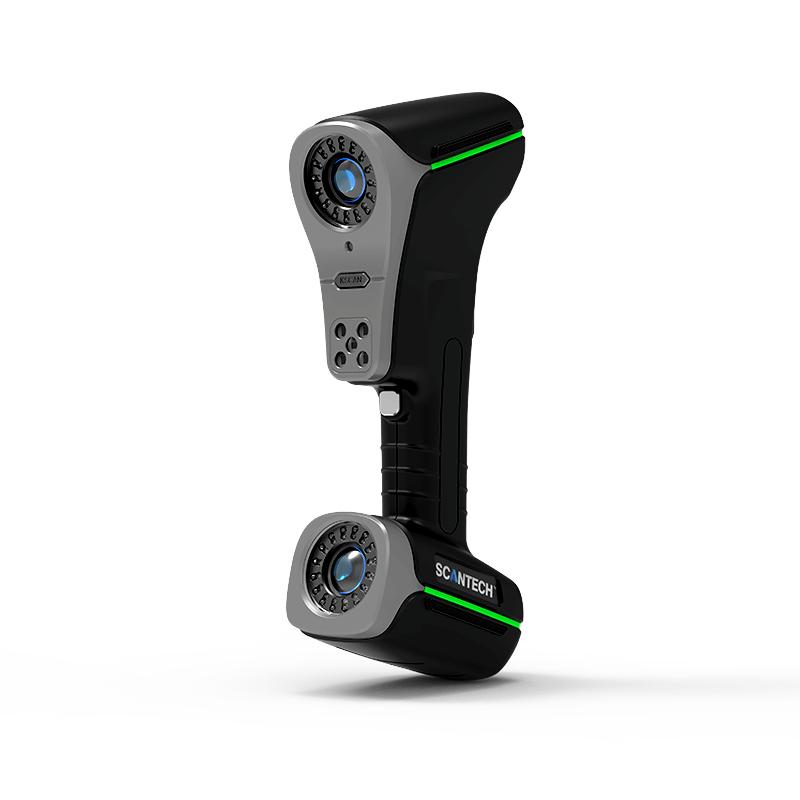

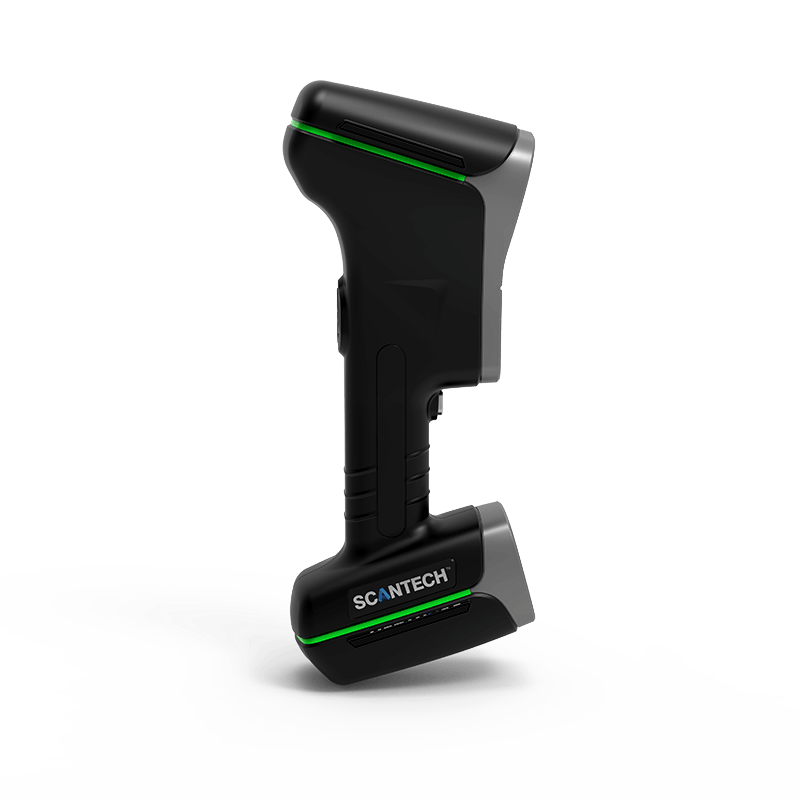

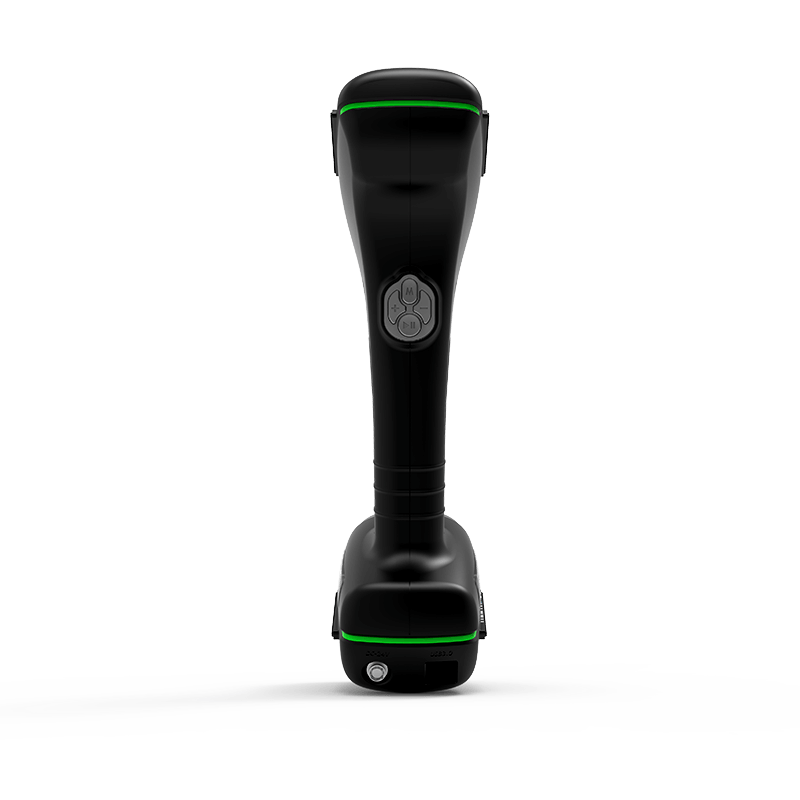

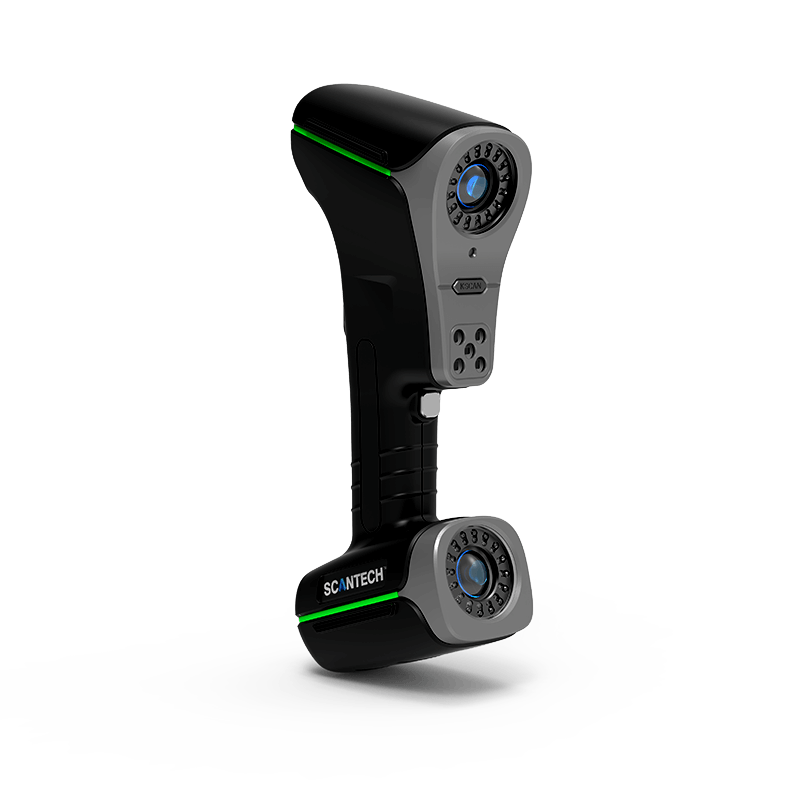

KSCAN-Magic composite 3D scanners open up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.
KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.
Tech Specs
| Type |
KSCAN- MagicII Composite |
| Scan Mode |
Ultra-fast scanning 13 blue laser crosses (1+ extra blue laser line)
Hyperfine scanning 7 blue parallel laser lines
Large area scanning 11 parallel infrared laser lines
|
| Laser lines total |
45 |
| Deep hole scanning |
Support
|
| Accuracy |
0.020 mm |
| Scanning rate |
Up to 1,650,000 measurements/s |
| Scanning area |
Up to 1440 mm × 860 mm |
| Photogrammetry system |
Standard configuration: Built-in
Scanning area: 3760 mm × 3150mm
Depth of field: 2500 mm
|
| Laser class |
CLASS Ⅱ (eye-safe) |
| Resolution |
Up to 0.010 mm |
| Volume accuracy |
|
Work alone: 0.030 mm/m
Work with 1m reference bar: 0.020 + 0.020 mm/m
Work with MSCAN-L15: 0.020 + 0.015 mm/m
|
|
| Stand-off distance |
300 mm |
| Depth of field |
925 mm |
| Portable CMM K-Probe |
Optional: Support
Single point repeatability: 0.030 mm
Tracking frequency: 60 hz
|
| Intelligent edge inspection module |
Optional: Support
Edge accuracy: 0.030 mm
|
| Pipe inspection module |
|
Optional: Support
Output formats: YBC / LRA / compensation value
|
|
| Output formats |
.stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized |
| Operating temperature range |
-10~40°C |
| Interface mode |
USB 3.0 |
|
|
| Patents |
CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628 , WO2018072433, CN206132003U, CN104501740，US10309770B2 |
|
