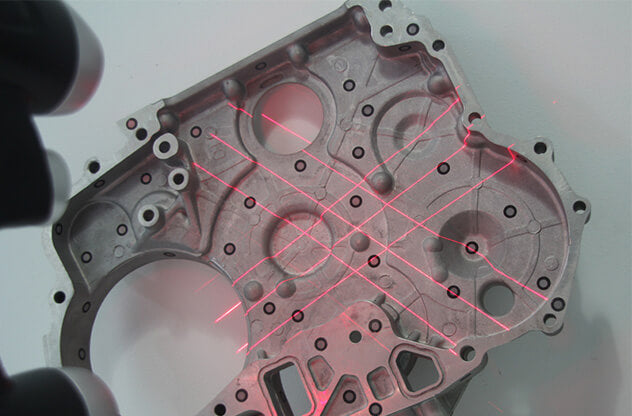

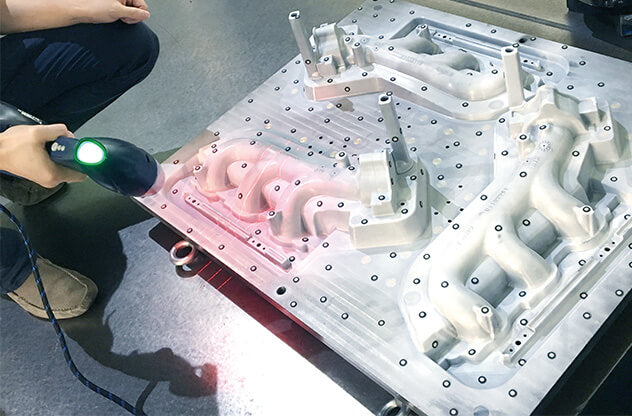

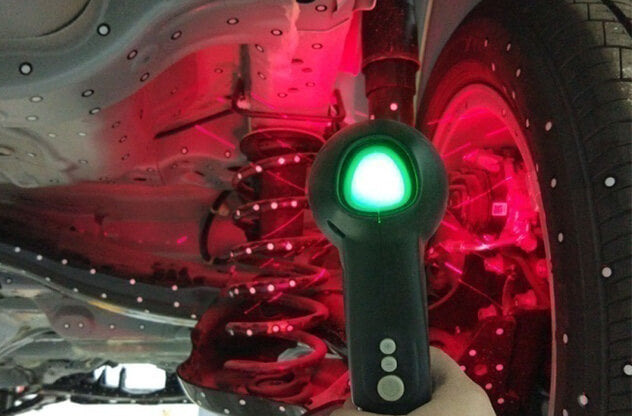

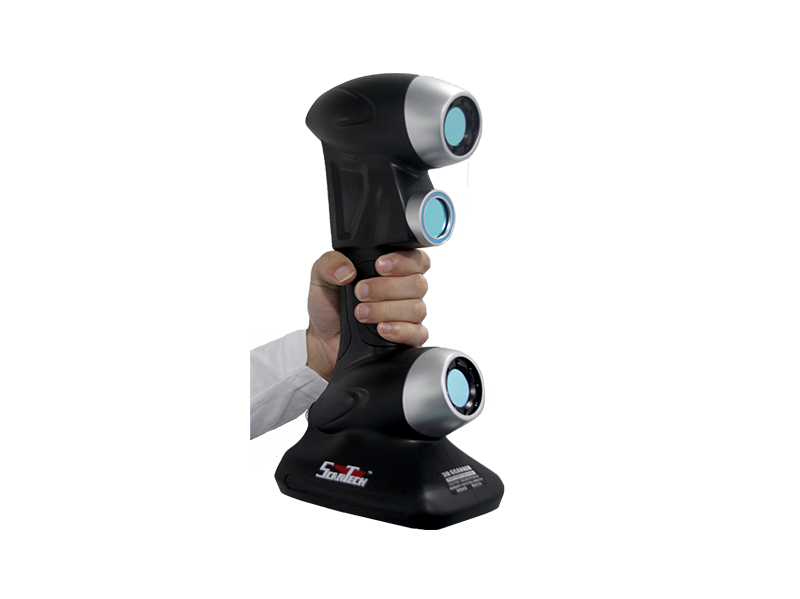

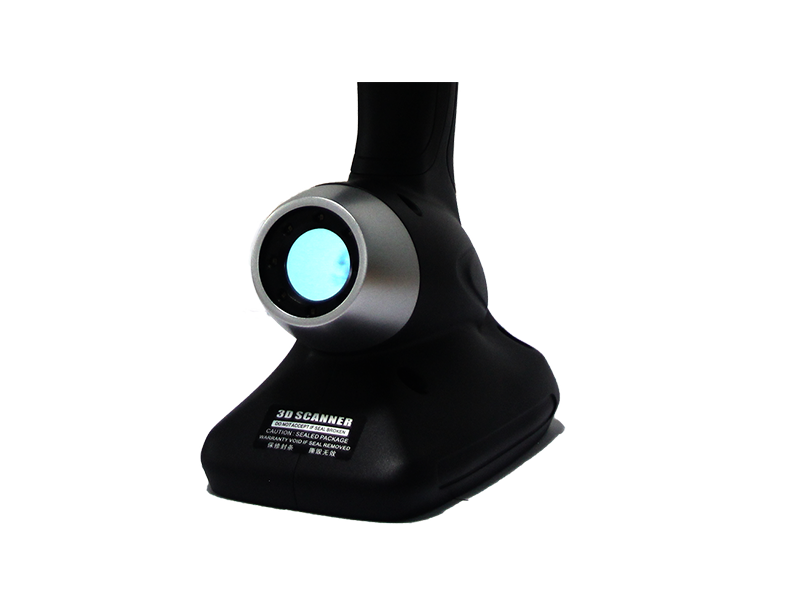

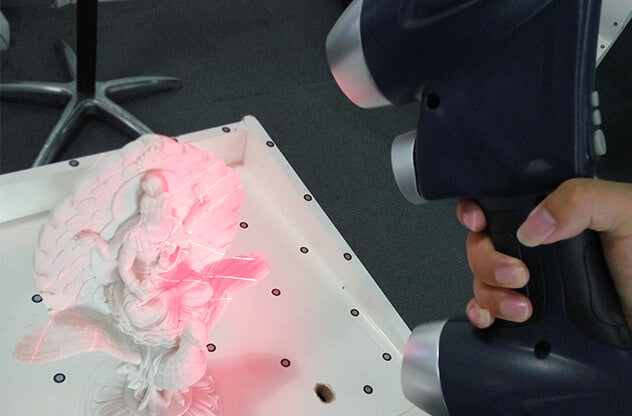

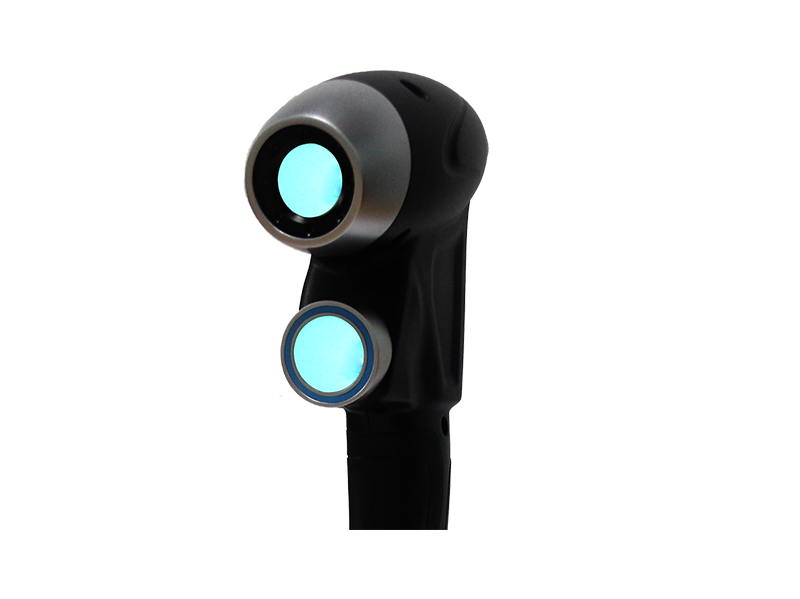

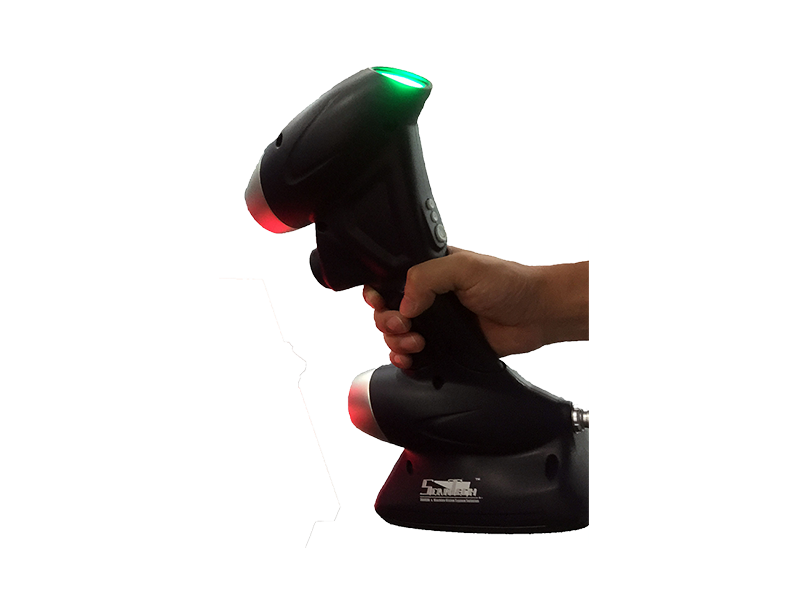

HSCAN is metrology 3D scanner, adopts multiple beam lasers to obtain 3D point cloud from object surface and friendly-use to operator. It can work with photogrammetry system (MSCAN) while scanning large volume to improve volumetric accuracy.

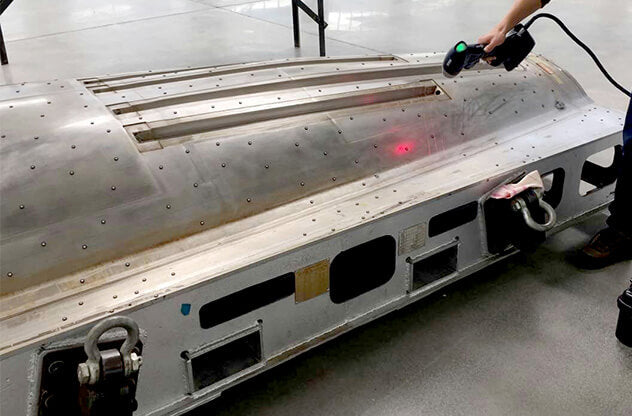

The scanner can be conveniently carried to workshop and stable in different environment to perform high accurate 3D scanning.
Tech Specs
| Type |
HSCAN771 |
| Weight |
0.9kg |
| Dimension |
315*165*105mm |
| Laser source |
7 red laser crosses
(+1 extra red laser) |
| Scan deep hole |
support |
| Hyperfine scan |
support |
| Measurement rate |
480,000 measures/s |
| Scan area |
275mm×250mm |
| Laser class |
CLASS Ⅱ（eye safe） |
| Resolution |
0.05mm |
| Accuracy |
Up to 0.03mm |
| Volumetric accuracy |
0.02mm+0.06mm/m |
Volumetric accuracy
(with MSCAN) |
0.02mm+0.025mm/m |
| Stand-off distance |
300mm |
| Depth of field |
250mm |
| Output format |
. ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.stl or customized |
| Work temperature |
-10~40℃ |
| Interface mode |
Gigabit Lan |
| Rapid calibration |
Complete calibration within 60s |
| PC requirements |
CPU：i7-6820HQ
RAM：32G，2133MHzDDR4
GPU：NVIDIA Quadro M1000M 2GB GDDR5
Operating system：Windows 7-64 bit, Windows 8 |
| Patents |
CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628, WO2018072433, CN206132003U, CN104501740, US10309770B2 |
