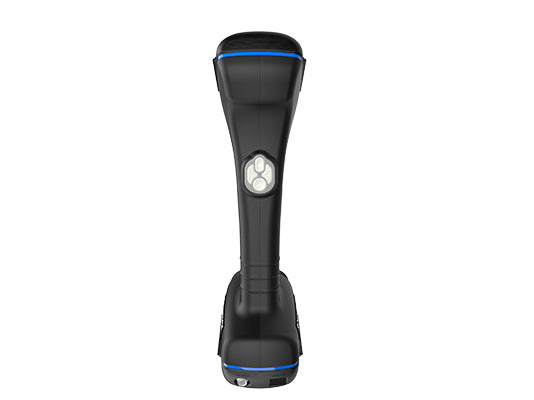

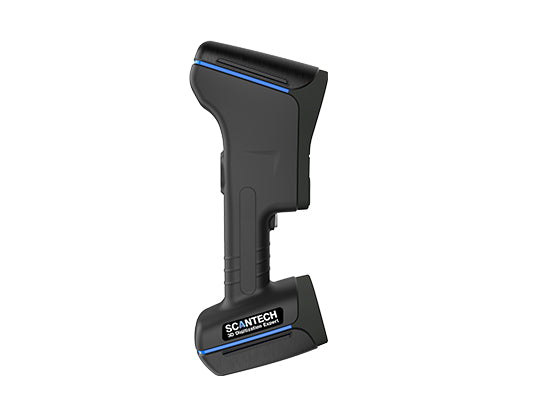

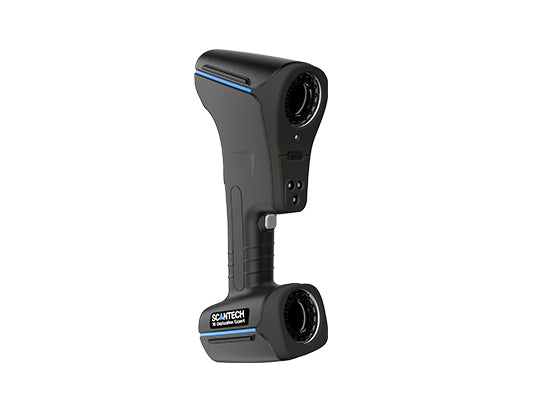

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.
The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.
The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).
| Type |
AXE-B11 |
| Laser source |
11 blue laser crosses + 1 extra blue laser line |
| Deep hole scanning |
Support |
| Accuracy |
0.020 mm |
| Measurement rate |
1,300,000 measurements/s |
| Scanning area |
Up to 550 mm × 600 mm |
| Scanning area (photogrammetry) |
2500 mm × 3000 mm |
| Laser class |
CLASS Ⅱ（eye-safe） |
| Resolution |
0.025 mm |
Volumetric accuracy
(without extra device) |
0.020 mm + 0.035 mm/m |
| Stand-off distance |
450 mm |
| Depth of field |
500 mm |
| Depth of field (photogrammetry) |
2500 mm |
| Output formats |
.stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized |
| Operating temperature range |
-10 ~ 40°C |
| Interface mode |
USB 3.0 |
| Patents |
CN204902790U,CN206905709U,CN107202554,US10309770B2 |
